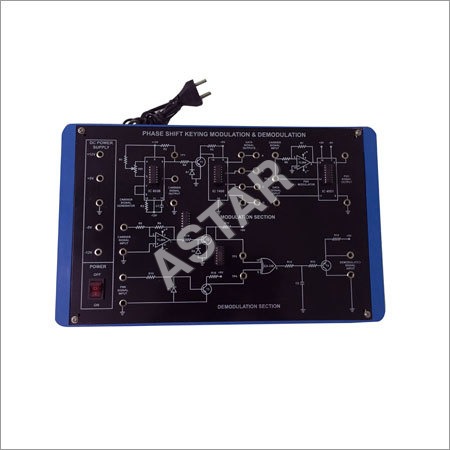

Phase Shift Keying (PSK)

We are engaged in presenting the specifically engineered Phase Shift Keying (PSK) in the market. This PSK has been designed specifically for the study the phase shift, keying modulation and demodulation. This product is absolutely self-contained and requires only CRO to display the result. This product has high accuracy and easy to use. This product carries great educative value for science and engineering students. We are providing this Phase Shift Keying (PSK) in the market at leading market price.

Features:

• Good build Quality
• Precisely designed terminal/sockets
• Reliable components

Phase Shift Keying (PSK)

Being a profound manufacture and supplier, we are zealously indulged in putting forward high grade Phase Shift Keying (PSK). It equipment consists Op-Amp IC, Decade counter IC, Multiplexer IC, Quad Op-Amp. IC, Quad, 2-input EX-OR gate IC, ON/OFF switch, fuse and jewel light. The product is specially designed for the study the Phase shift keying demodulation and modulation. This is known for great educative value for Engineering and Science students. Our engineered Phase Shift Keying (PSK) is easy to operate and available with us at negotiable prices.

Technical specification:

• Fixed Output DC Regulated Power Supplies of ±12V & ±5 V.
• Built in Carrier Wave Generator (Sine Wave) of 5V peak to peak amplitude, 22 KHz +5% frequency range with output on sockets.
• Built in Data Generator using IC 74xx with four outputs on sockets.
• IC 4051 is used to build the PSK Modulator.
• Built in PSK Demodulator using IC 74XX
• Circuit diagram is printed on the front panel and important connections are brought out on the sockets.
